DCP resin is a thermosetting resin made mainly of dicyclopentadiene (DCP), which can produce molded products with large and complex shapes in a short period of time. In addition, since reaction polymerization and shaping are performed simultaneously in the mold, it can be used for a wide range of large-volume, medium-volume, and low-volume production.
Since a liquid resin with low viscosity and high reaction is used for molding, it is suitable for large, thick, and complex molded products.
The pressure and temperature during molding are low, and the mold cost is low.
In addition, the simple RIM manufacturing facility reduces the labor, time, and cost of production start-up.
Impact resistance and rigidity are balanced at a high level, and strong molded products can be obtained.
Molding is done in an environmentally friendly manufacturing process with a short reaction time and no need fot either a mold release agent or post-cure.
In particular, compared to FRP, which is used for large-scale molding, the molding cycle can be greatly shortened.

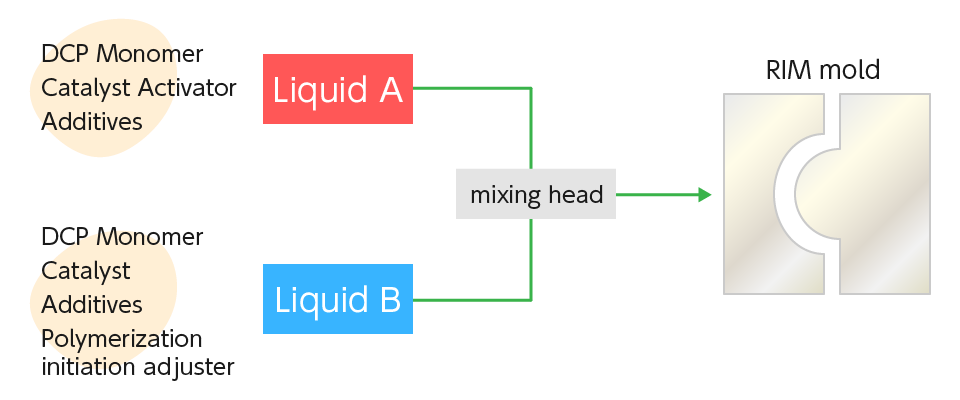

Two components, A and B, are collided and mixed with a mixing head, injected into a mold, a polymerization reaction occurs in the mold, and a molded product can be obtained by curing.
Taking advantage of its heat resistance, impact resistance, and electrical characteristics, it has a proven track record in various applications.

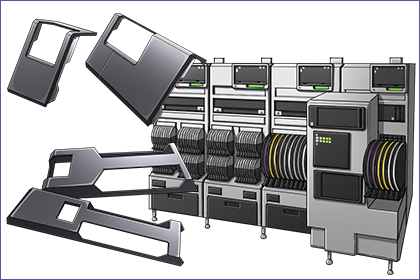

Combining an electronic component assembly robot with conductive coating to create a resin cover.

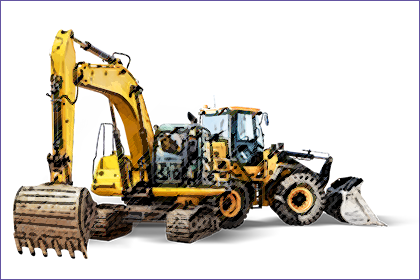

We have a track record in the field of construction machinery and agricultural machinery that takes advantage of outdoor use, high durability and impact resistance.

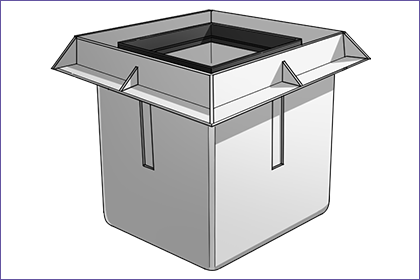

Utilizing physical properties such as impact resistance, acid resistance, and alkali resistance. It is an application that also contributes to weight reduction compared to concrete.

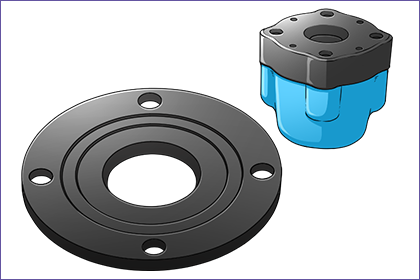

It is resistant to high pressure and bending stress, and is used to deal with corrosion such as rust prevention and salt damage.
Dicyclobenzene resin is a revolutionary new material that can be used to manufacture large, complex molded products through RIM molding.
[Properties, processing, and features]
About DCPD-RIM molded products
